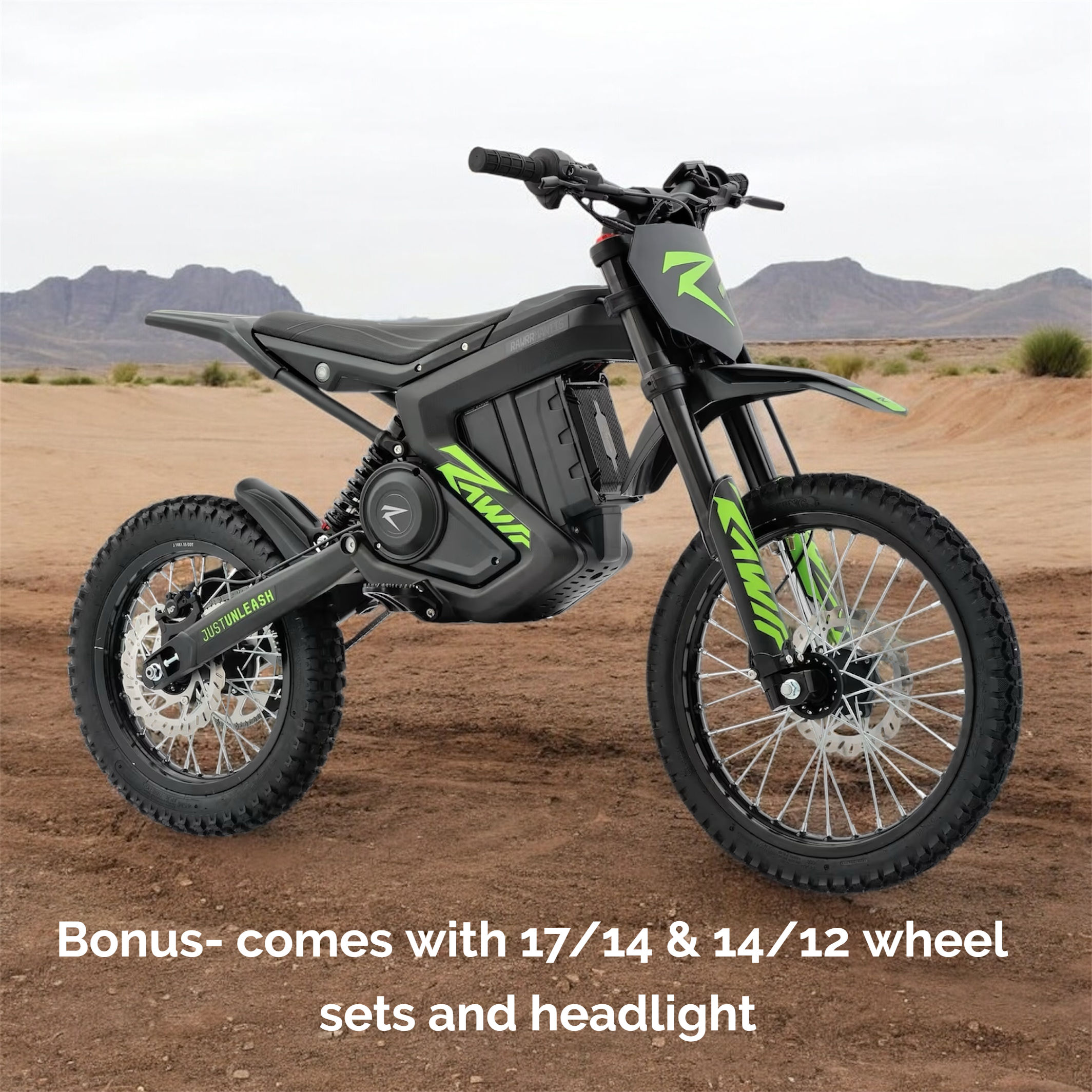

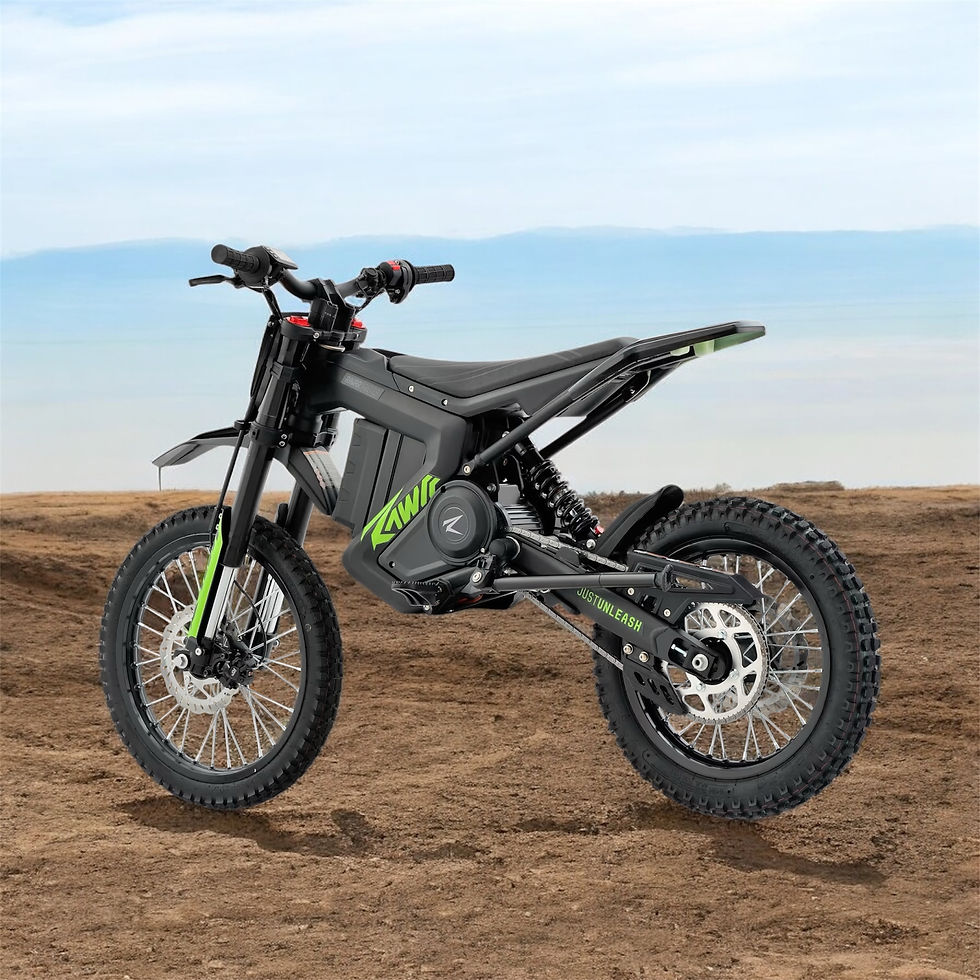

72v RAWRR MANTIS MINI R PLUS 17/14 Tyre Set

72v RAWRR MANTIS MINI R PLUS 17/14 Tyre Set

AU$4,630.00 Regular Price
AU$4,480.00Sale Price
Sales Tax Included

$150 Discount for Pre-orders !!! Comes with LED headlight (normally an option) 2 sets of rims and tyres - 14/12 and 17/14

The Newest Model from Rawrr !

The Mantis Mini R, 72v designed for young riders who want a more serious bike. It features a 735mm seat height, 12-inch rear wheel, 14-inch front wheel, PLUS 17/14 Tyre Set. Multiple power modes, 6500w peak, and 70KPH top speed.



The Mini Mantis R allows kids, parents and users can control the bike's maximum power, starting with the simplest mode for training and gradually increasing until their skills warrant a full-power mode.



Compact and Stylish

Perfect for everyday fun and serious pit racing.

Speed and Performance

Fast and thrilling, ideal for varied riding adventures.

Robust Suspension

Ensures a smooth ride across different terrains.

Comfortable Seating

Designed for comfort during long and short rides.

Safety Equipped

Includes a kill switch for safe and controlled riding.

Vehicle Size Length*1580mmWidth*671mm Height * 960mm or 1640mm*671mm*990mm (17/14)

Motor type 72v PMSM brushless DC motor

The motor's peak torque is 210 NM and its maximum rotation speed is 4200 RPM

Power mode (1/2/3)Eco / Sport / Race

Cooling method natural cooling

Battery capacity 72V 20Ah (1440WH) Samsung Lithium water proof

Battery charging time 3-6H

Frame structure type Double beam forged aluminum alloy /6061

Handlebar tapered aluminum 22mm

Front shock absorber 100mm travel(inverted and non-adjustable)spring hydraulic damping shock adjustable

Rear shock absorber 45mm travel/Hydraulic damping structure/rebound and downward pressure adjustable

headlight LED

taillight nil

Warning horn Yes

Front/rear damping travl 100mm/45mm

Front brake 203mm/2piston hydraulic disc type

Rear brake 203mm/2piston hydraulic disc type

Tyre size(front/rear) front 60-100/14 rear 2.75/12 Plus F:70/100-17 R:80/100-14

Chain 06B

Wheelbase 1073mm/1081mm

Height of handlebar 950/980mm

Ground clearance 240mm/270mm

Seat height 14/12 - 735mm - 17/14 760mm

Top speed 75km

Speed up 0-30km/1.8s 0-50km/3.6S 0-75km/10S

Care Instructions

The Mantis Mini R is water resistant, we do not recommend spraying water in certain areas. Specifically avoid spraying water at the controls on the handlebar and at the area around the charging port.



Avoid spraying water at the display, throttle, handlebar controls and charging port areas. Instead, use a damp cloth to clean these areas.



You can spray water at or below the guard in the front, the frame below the seat, swing arm, rear wheel, rear suspension, and rear guard



Be aware that this Mantis off-road model sold by Rawrr or its authorized dealers are intended exclusively for off-road purposes. It is important to acknowledge that these vehicles may not adhere to specific national, federal, provincial, and/or local laws or regulations. As the buyer, it is your responsibility to thoroughly acquaint yourself with any potential restrictions that may apply to the usage of such a product in your specific location. You assume complete liability for the choices you make regarding its utilization and any potential ramifications that may arise as a result.



Use only under parental supervision. Please ensure you always wear a helmet and safety clothing.Not Suitable for or on track use. Misuse including using at a track, jumping and or modifying any part of this bike will result in voiding of the warranty and increases risk of injury to people and property.

All figures are approximate and can vary due to terrain, rider, battery charge and other contrubiting factors.
